Print elevation diagrams, profile cutting optimizations, glass cutting lists, and work order travelers
What this does
Generates professional production job packages containing 1:1 parametric elevation drawings, barcode traveler route sheets, profile/glass cutting optimization plans, and CE Declarations of Performance.
Before you start
- Production order confirmed and cut-optimization calculated.
Steps
Important
Including barcoded Work Order Travelers at each workstation guarantees that CNC milling and corner crimping follow the exact CAD fabrication specs.
-
01
Open any confirmed Production Order or Work Order.
-
02

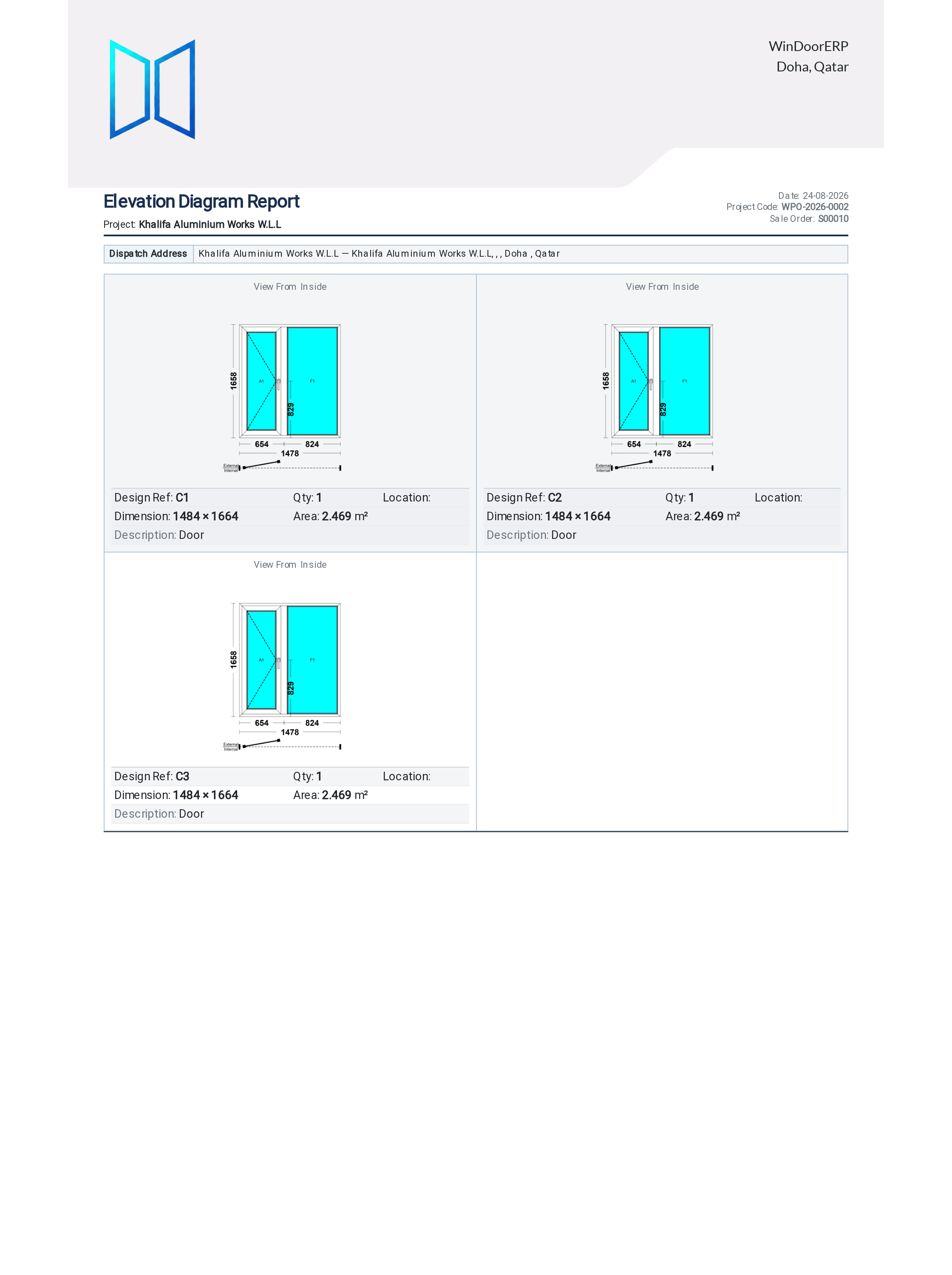

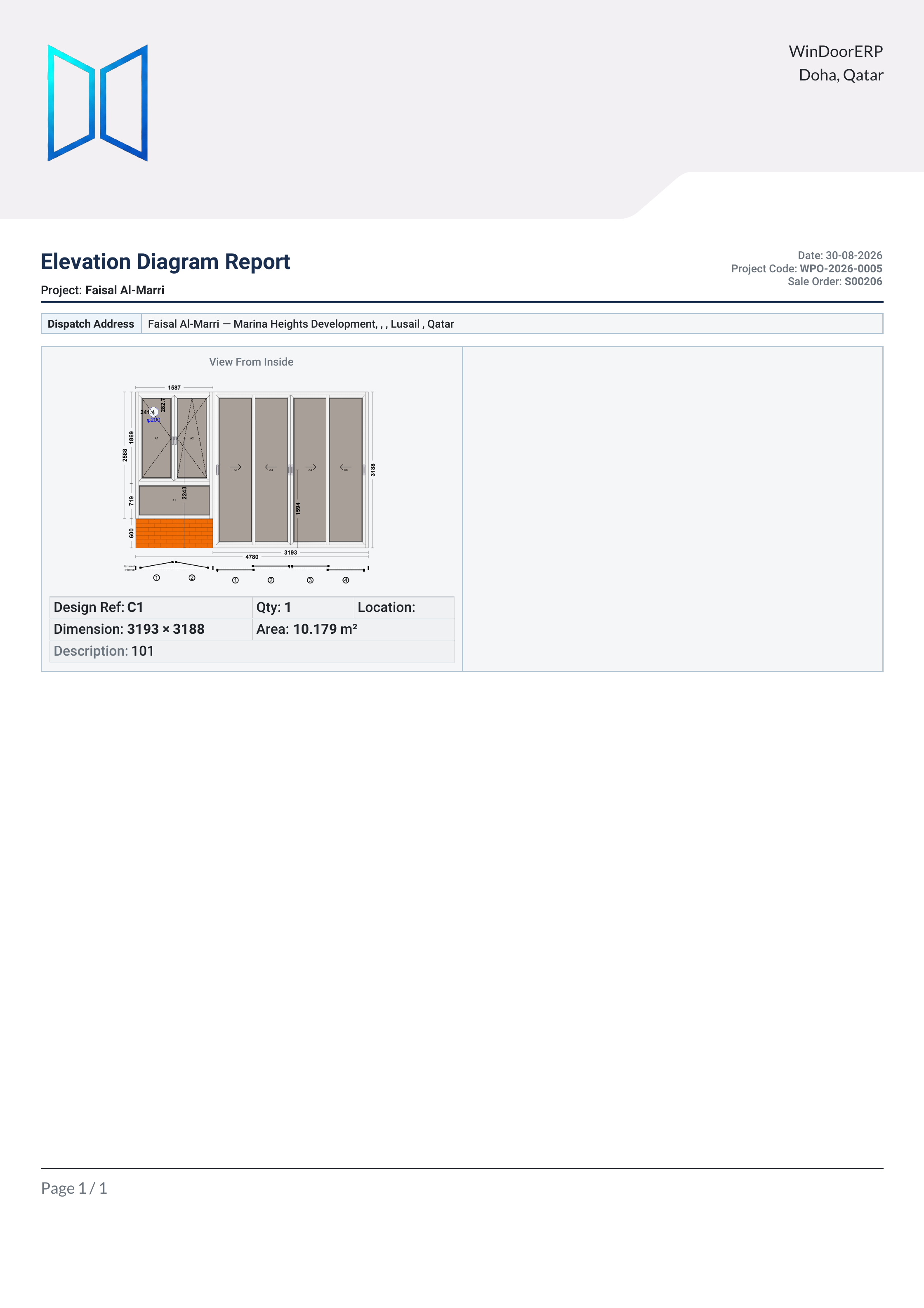

Click Print and select Elevation Diagram to generate high-resolution dimensional drawing submittals.
-
03

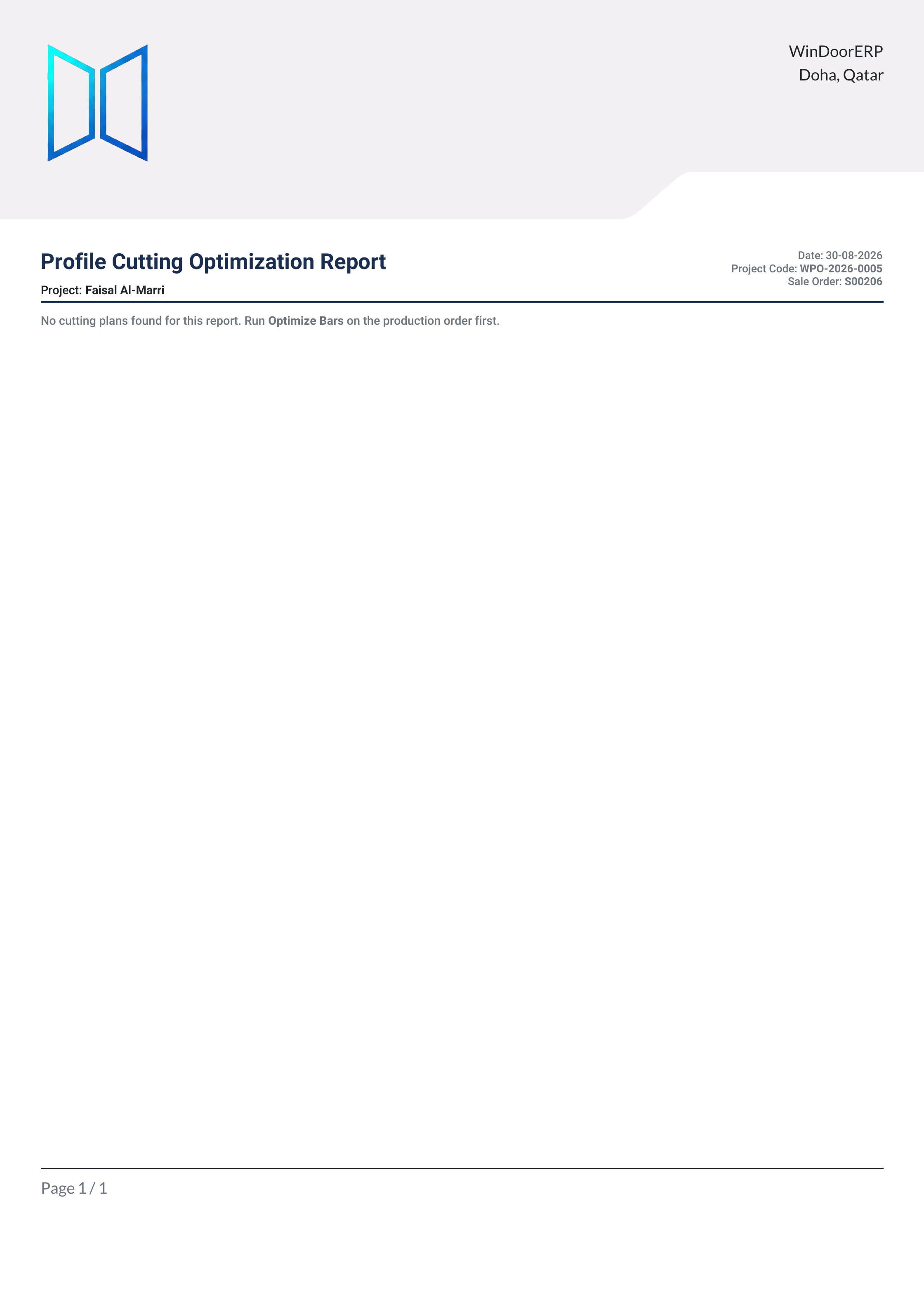

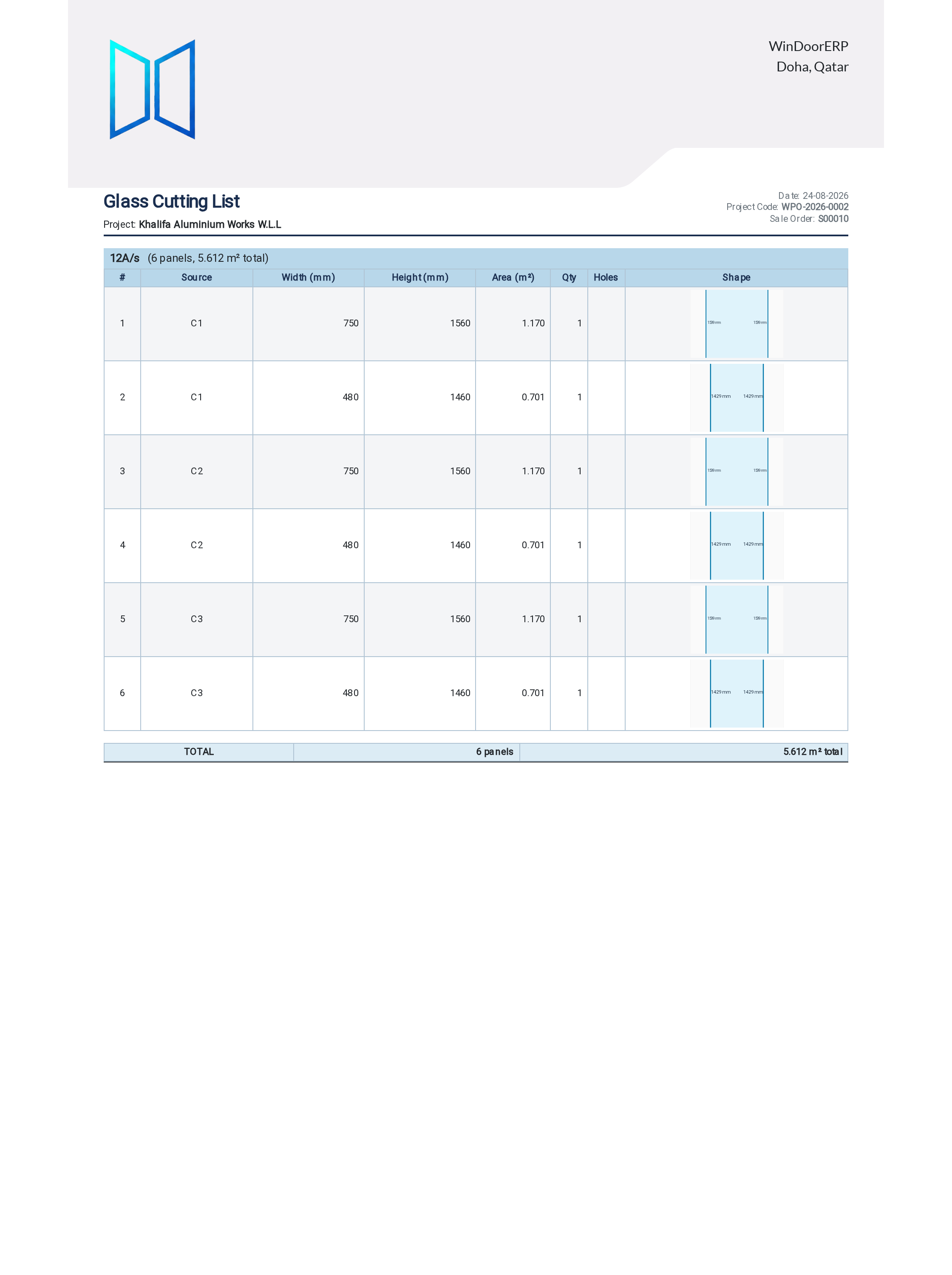

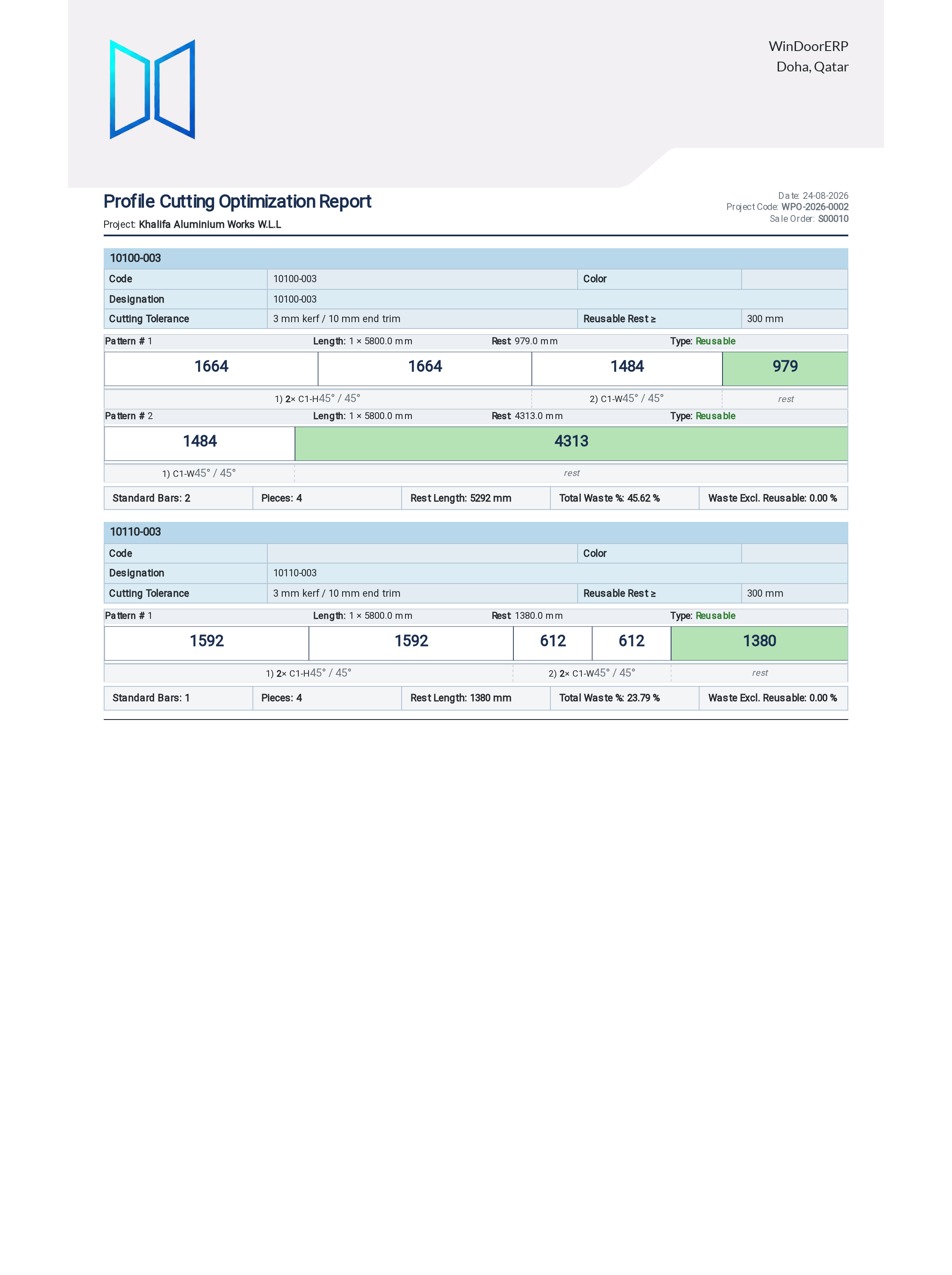

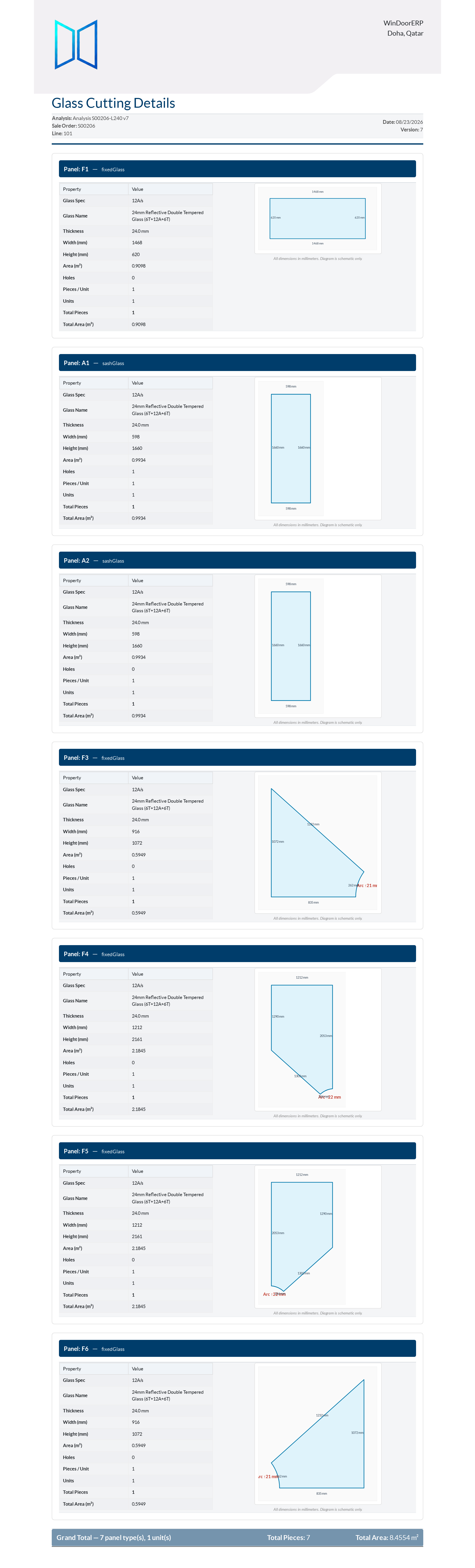

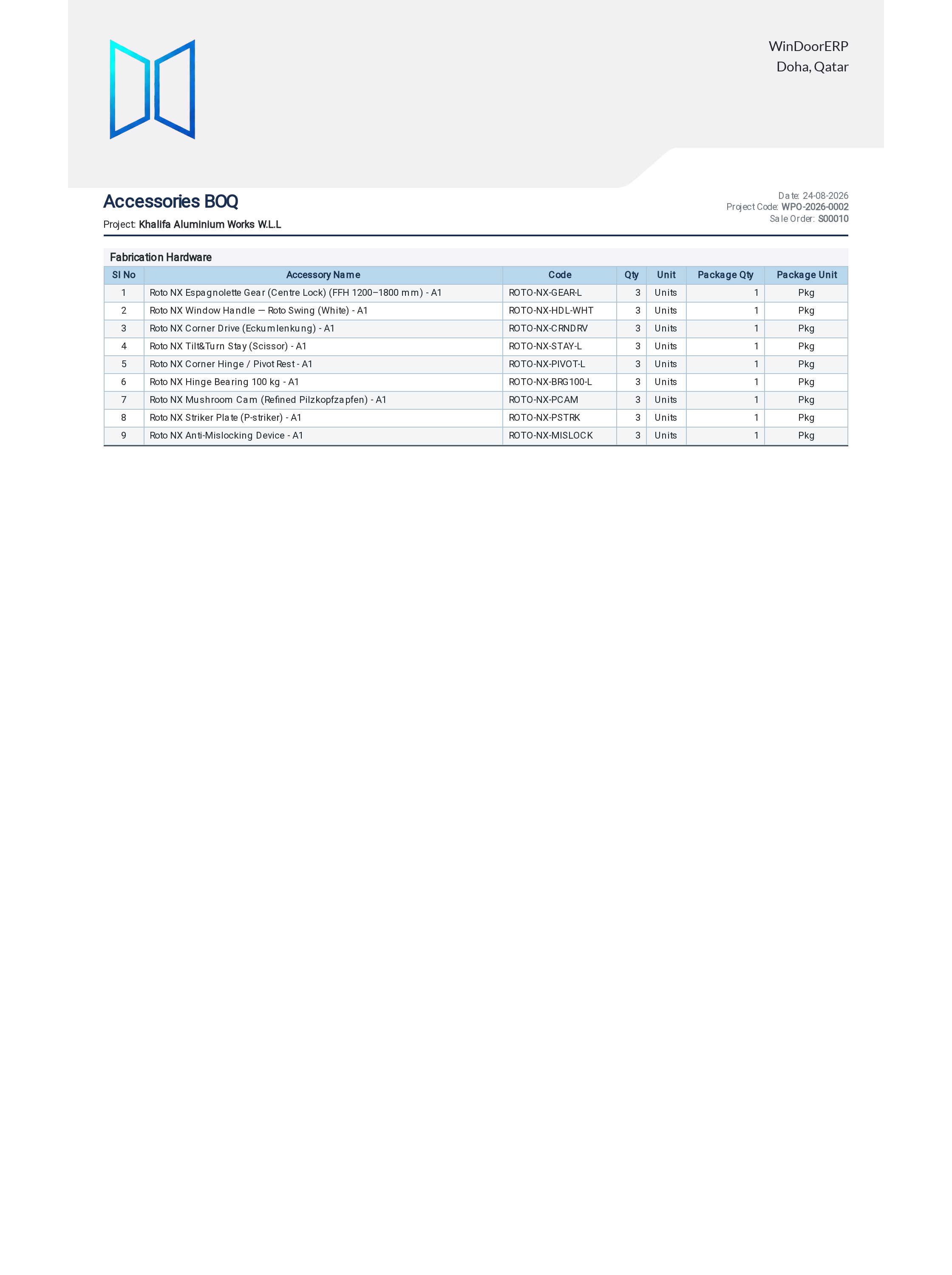

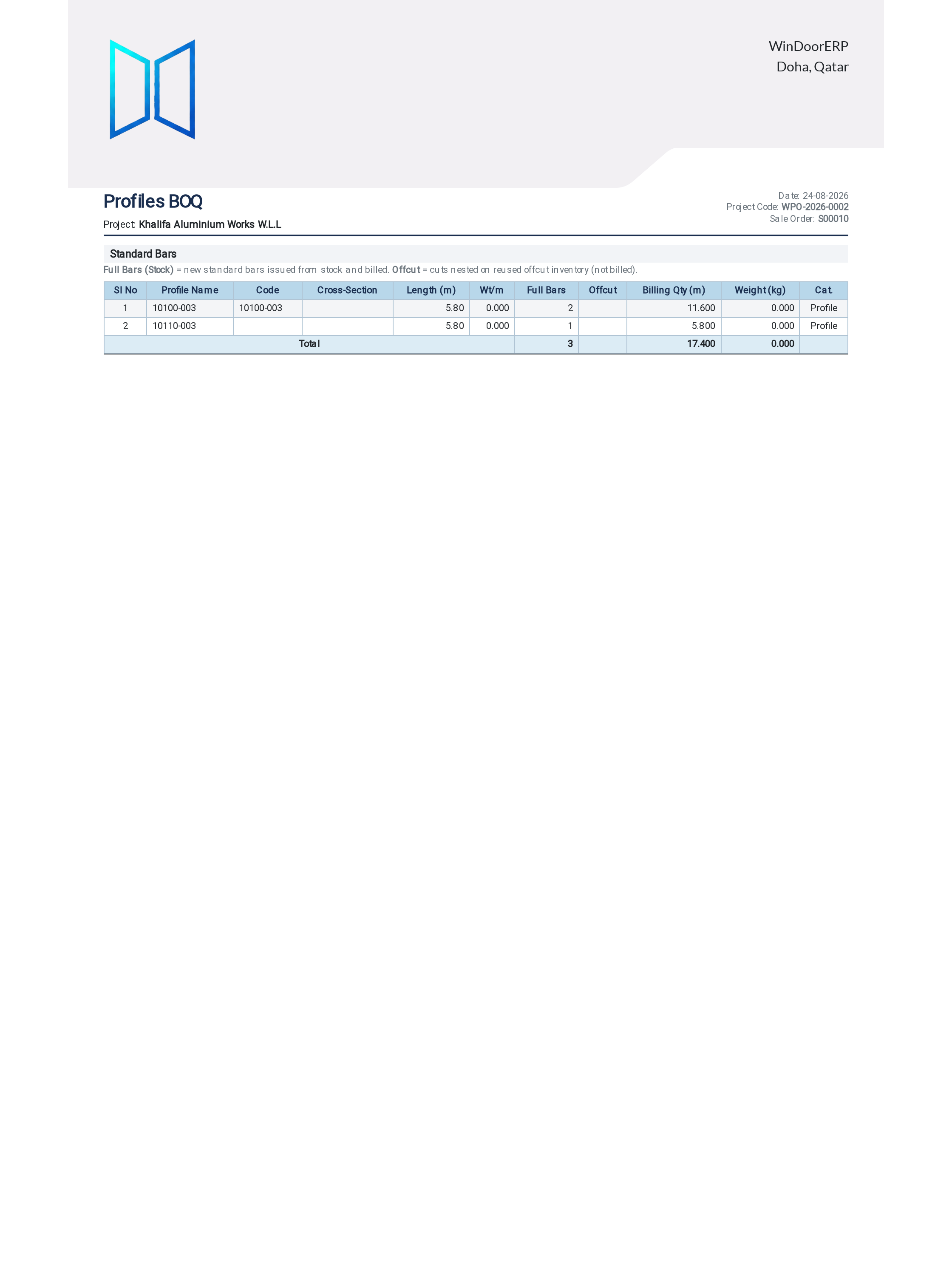

Print Profile Cutting Optimization and Glass Cutting List for factory saws.
-
04

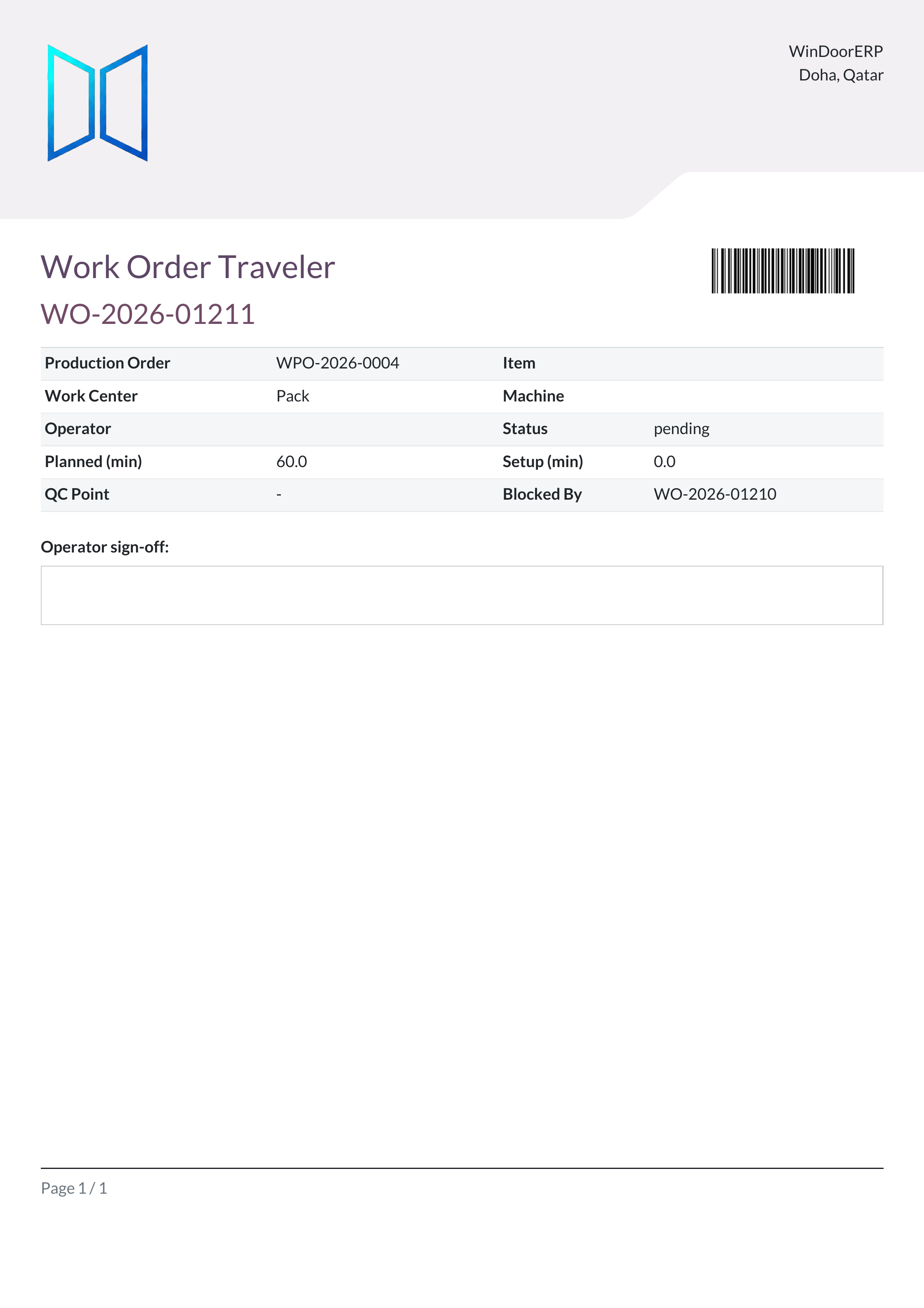

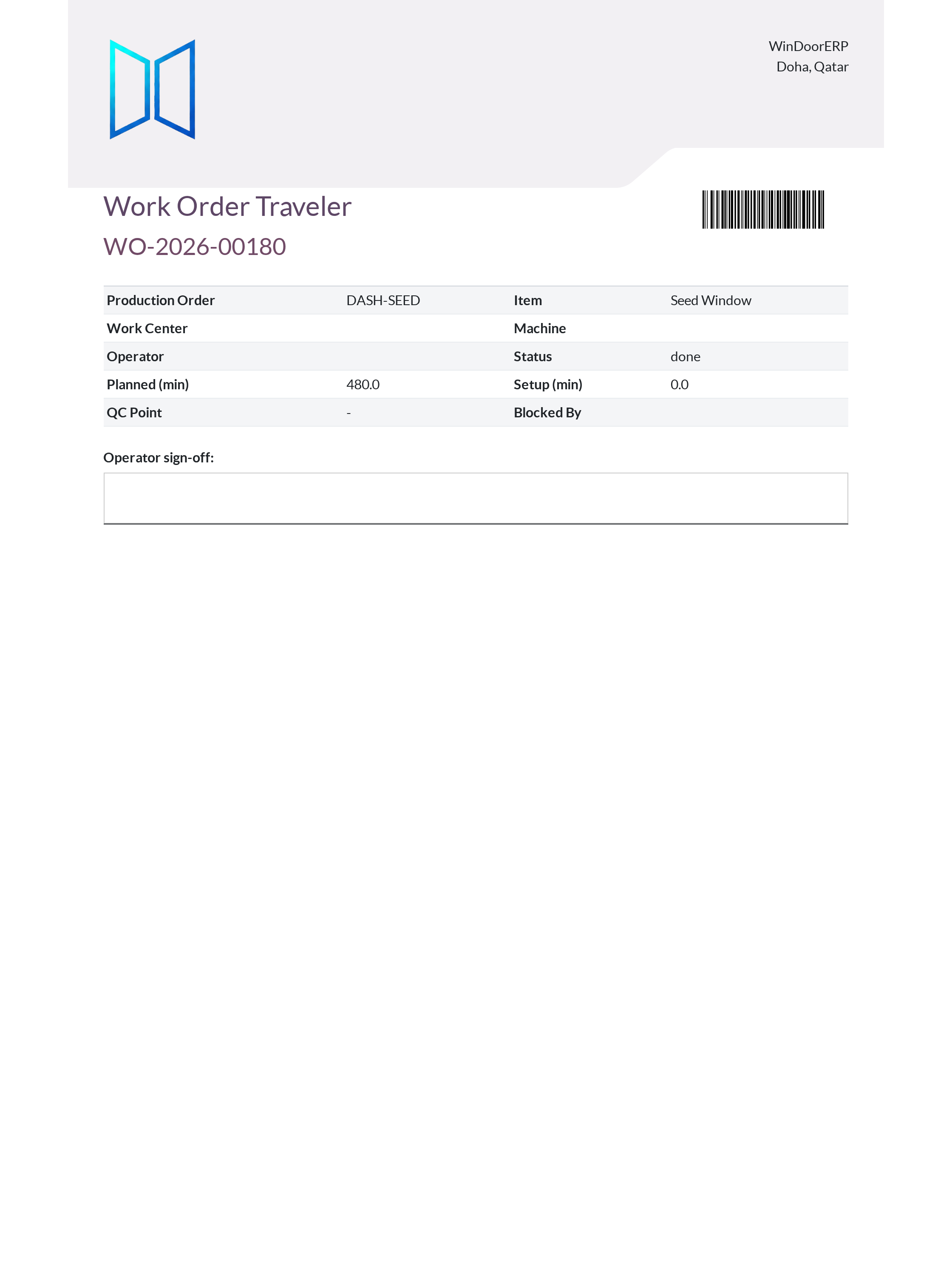

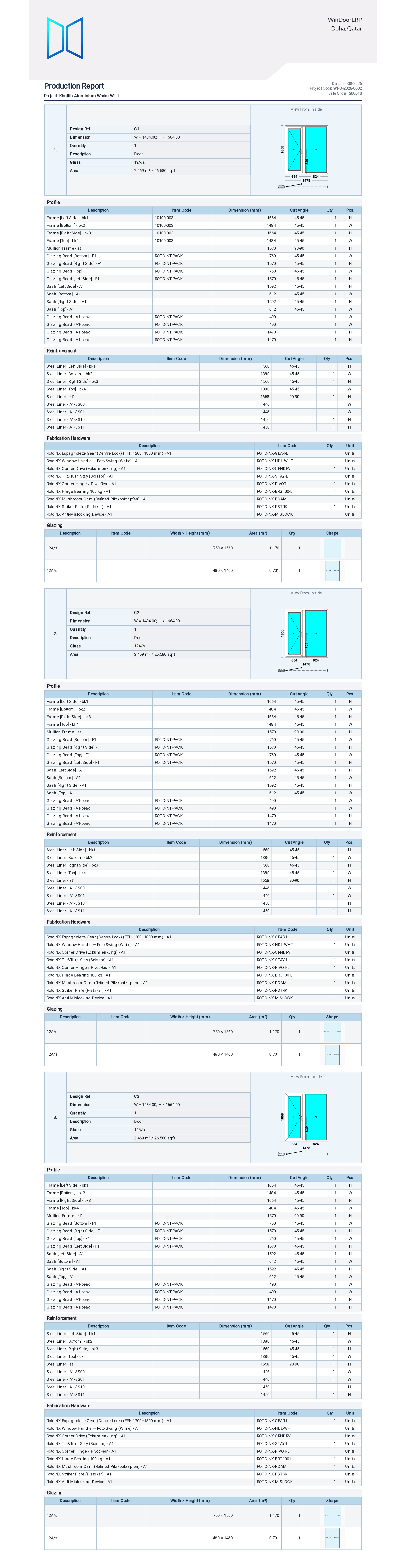

Generate Work Order Traveler with routing barcodes for shopfloor stage tracking.
-
05

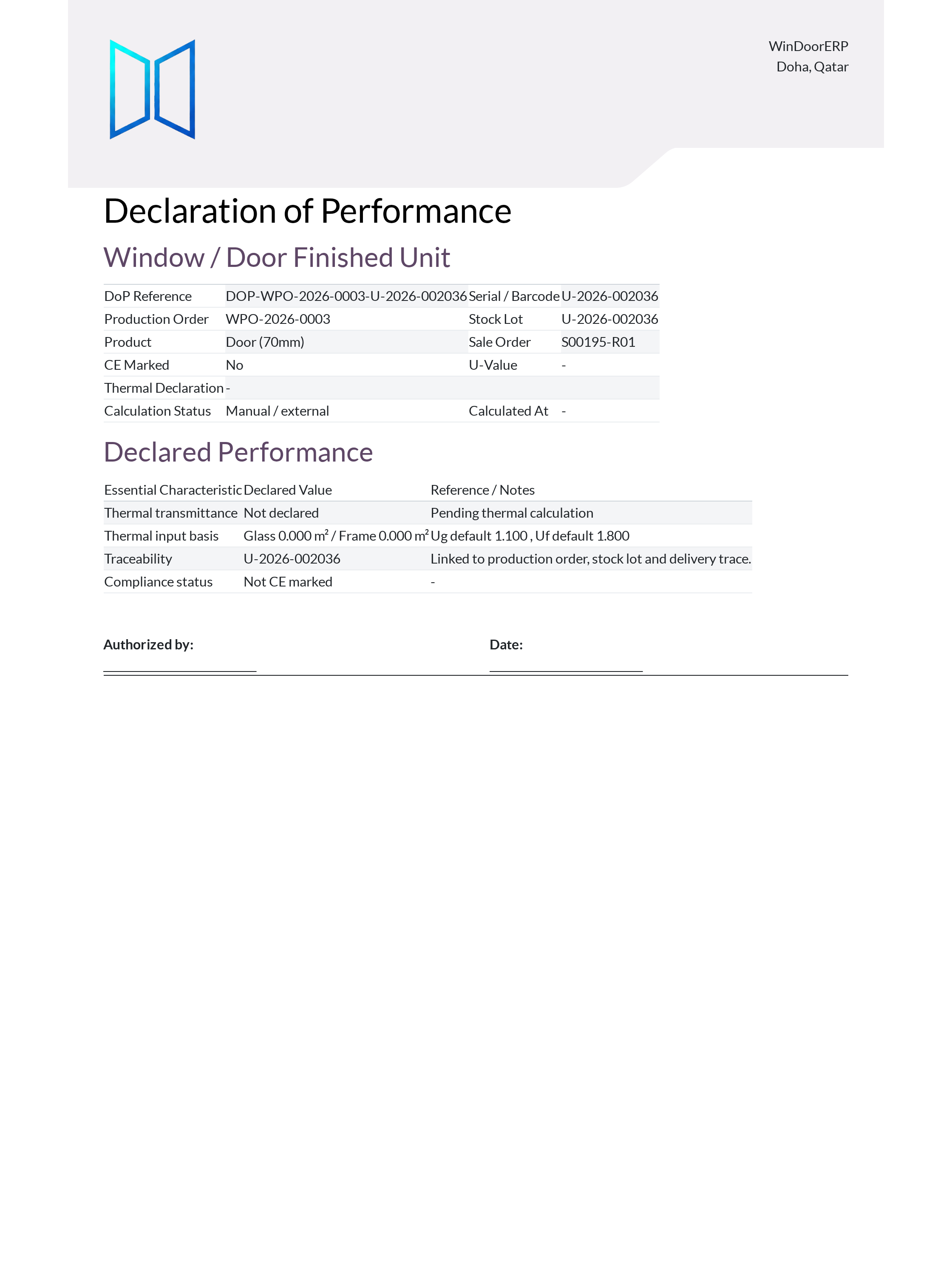

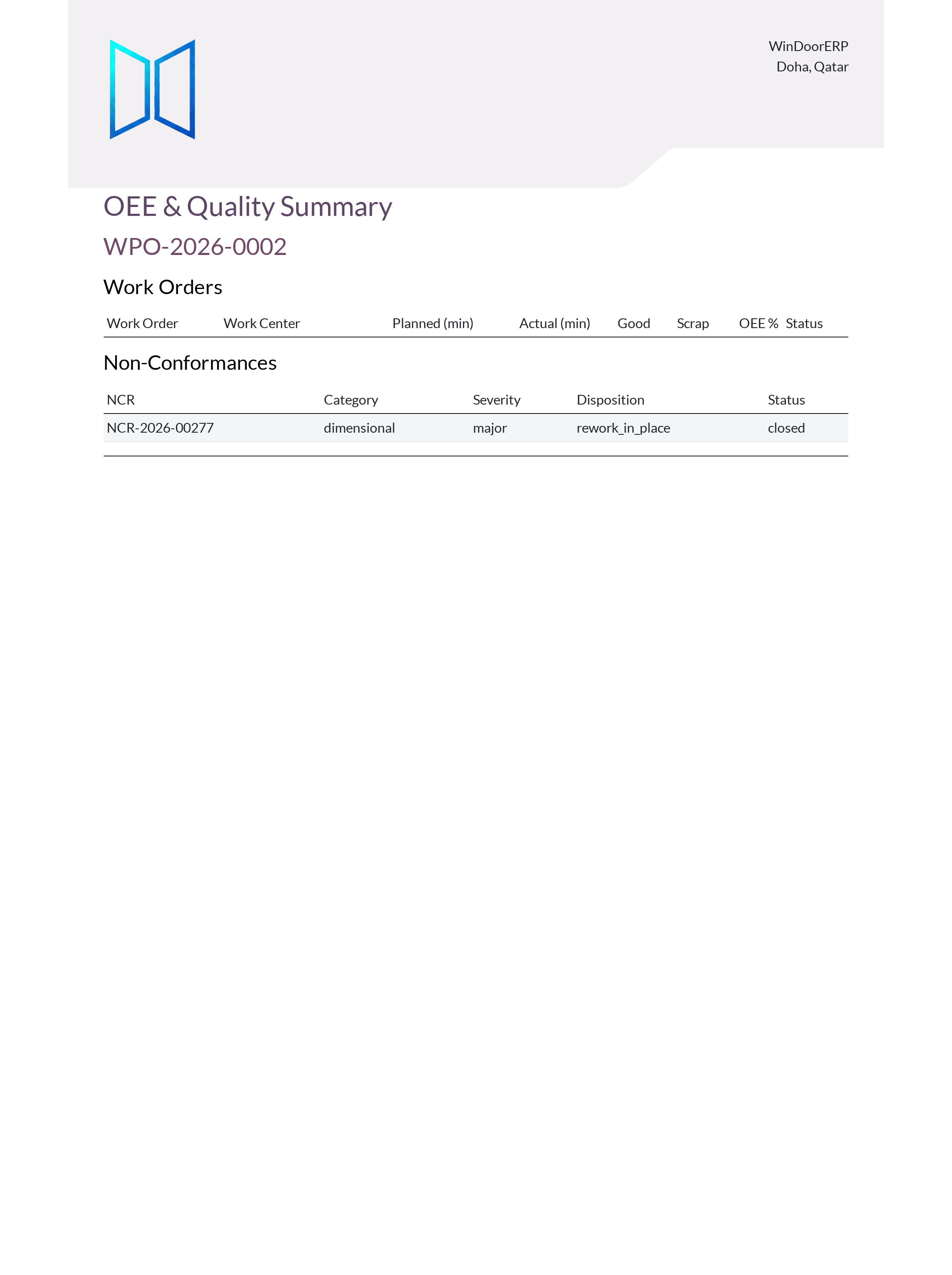

Print Declaration of Performance and OEE & Quality Summary for final client handover dossiers.
Common mistakes
- Sending manual saw operators profile cutting lists without the multi-bar optimization cutting diagram.
- Handing over completed structural glass facades without the official signed Declaration of Performance.
